Barcode Scanner

  • OPT-730W Laser Wireless Barcode Scanner with Charging Cradle
  • OPT-730W Laser Wireless Barcode Scanner with Charging Cradle
  • OPT-730W Laser Wireless Barcode Scanner with Charging Cradle
OPT-730W Laser Wireless Barcode Scanner with Charging CradleOPT-730W Laser Wireless Barcode Scanner with Charging CradleOPT-730W Laser Wireless Barcode Scanner with Charging Cradle

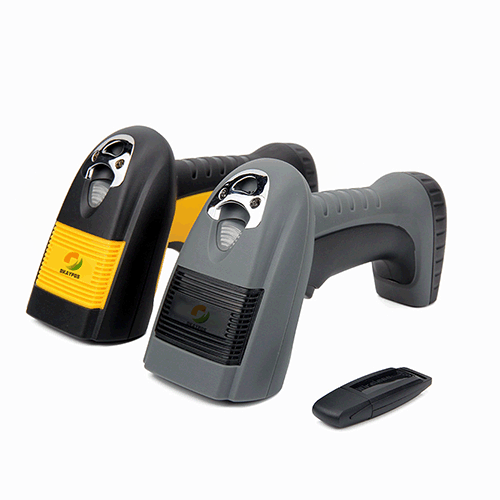

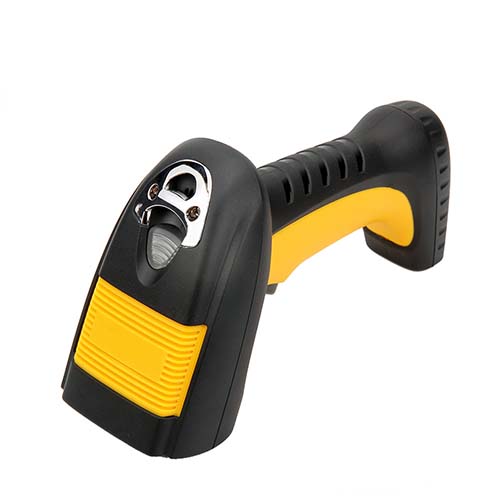

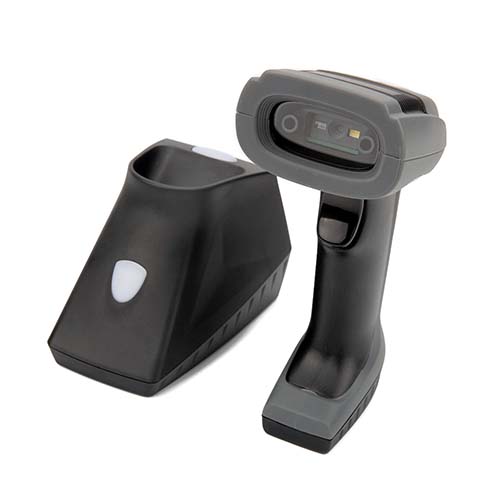

OPT-730W Laser Wireless Barcode Scanner with Charging Cradle

  • Product description: Product Name: Laser Wireless Barcode Scanner with Charging Cradle Model Number: OPT-730W
  • INQUIRY


Product Name: Laser Wireless Barcode Scanner with Charging Cradle

Model Number: OPT-730W

Physical Parameters

Material

ABS+TPE+PC

Size

207*85*193mm

Color

Gray+black

Charging

Wireless induction charging

Battery

3.7V  1400mAH

Electric current

245mA(working); 317mA(max)

Charging time

6 hours

Weight

567g±5g

Performance Parameters

Effective communication distance

30 meters

Frequency

2.4GHZ

Capacity

64K (stock 3500pcs 1D barcode with 14bit)(Capacity customized)

Sensor

laser

Light source

632nm (red LED)

Processor

32-bit  ARM Cortex-M3 MCU

Decoding ability

Codabar, Code 11, Code 93, MSI, Code128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, Industrial 25, Standard 25, 2/5 Matrix etc.

Resolution

4mil(0.1mm), PCS45%

Depth of field

500mm@20mil/0.5mmPCS90%

Scanning speed

300scans/sec

Trigger mode

Manual/ auto/ continuous

Scanning width

5cm- 30cm

Prompting mode

Buzzer, indicate light(LED)

Printing contrast

30%

Scanning angle

roll30°, pitch65°, yaw65°

Using environment

Operating temperature

0 to 50 ºC / 32 to 122 ºF

Storage Temperature

-20 to 70 ºC / -4 to 158 ºF

Operating Humidity

20 - 95% (non-condensing)

Storage Humidity

20 - 95% (non-condensing)

IP Grade

IP67

ESD protection

15kv

Shock Resistance

2m free fall on concrete surface
