Thermal Printer

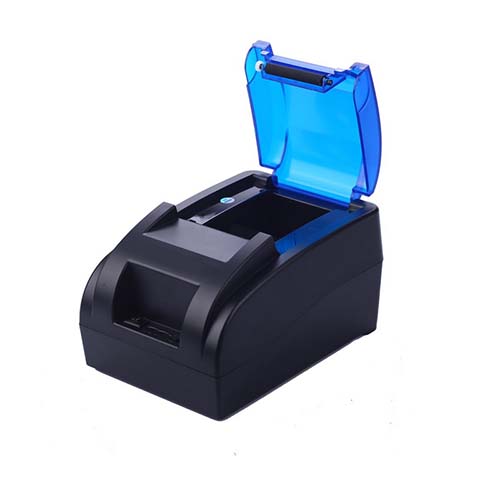

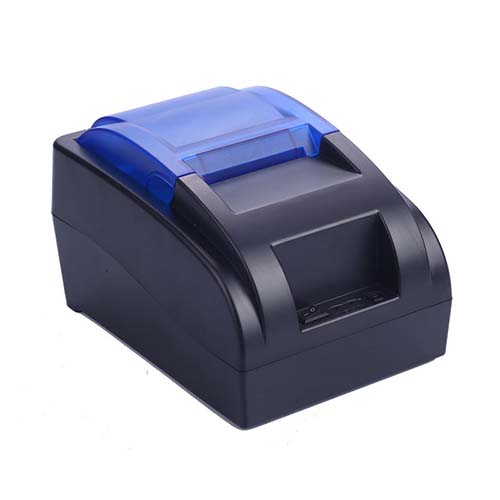

58mm Economical Thermal printer

Product performance:

●Appearance compact design, fashion technology;

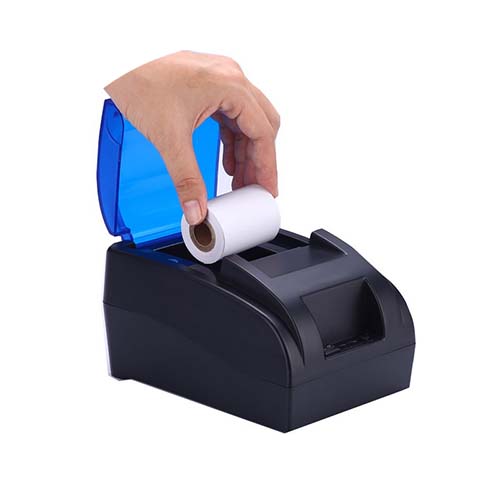

●Easy paper feed structure, simple and convenient operation;

●High reliability of large motor and large gear movement;

●130 mm / second ultra high speed print, significantly improve the printing efficiency;

●Big paper warehouse design, the perfect support for 83MM large diameter rolls;

●Rich interface optional: USB, COM, Internet (100M), WIFI, Bluetooth, GPRS;

●Support GB18030 large font and multi language ;

●Supports LOGO and graphics downloads and print;

●Supports Windows, Linux, Android and IOS system print;

●100M Ethernet interface, print quickly while avoiding losing bills.

Application:

Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal

Printer Parameters:

Items		Parameters
Print parameters	Printing Method	Thermal Line
	Printing Method	48MM
	Resolution	384dots/Line（8dots/mm，203dpi）
	Printing Speed	130mm/Second
	Interface Type	USB，COM，Internet（100M），WIFI，GPRS，Bluetooth
	Line Spacing	3.75 mm（Can adjust line spacing by command）
	Line No.	Font A:32 character /Line Font B:42 character/Line Simple,traditional Chinese-16 lines
	Character	Standard GB18030 simplified / traditional Chinese Fonts
	Character Size	ANKcharacter ， Font A ： 1.5 × 3.0mm （ 12 × 24 点） Font B：1.1×2.1mm（9×17 点） Simplified/Traditional Chinese：3.0×3.0mm(24×24 Dots）

Buffer	Input Buffer	4K
Buffer	NV Flash	40K
physical characteris tics	Weight	750g
physical characteris tics	Dimension	180115127(MM)
Environment	Working	Temp：5 ~ 45℃， Humidity：10 ~ 80%
	Storage	Temp：-10 ~ 50℃ ，Humidity：10 ~ 90%（No dew）
Reliability parameter	Print Head Life	100KM（print density≤12.5）
Software	Driver	Android,IOS,Linux,,WinXP,Win7,Win8,Win8.1,Win10
