Thermal Printer

High-end Thermal Printer

Product performance:

●300 mm / second ultra high-speed printing, improve the printing efficiency;

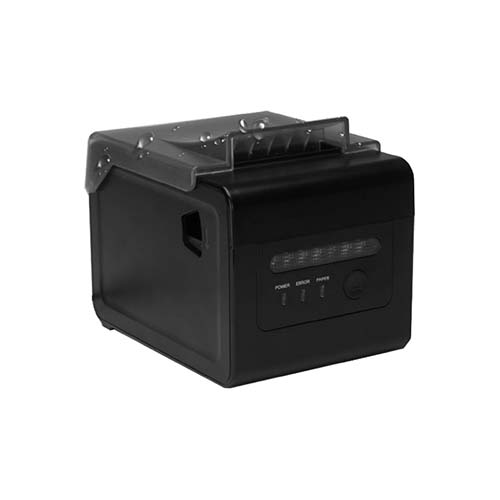

●Excellent waterproof, anti - oil, anti-dust structure design;

●Support wall hanging function, meet the special environment printing;

●Movable baffle design, support 80MM, 58MM different width of the paper roll printing;

●Support 80MM large diameter roll;

●Support kitchen printing and Internet printing

●Support printer monitoring function,to avoid losing bills

●Using 100M Ethernet card, connect printer faster, to avoid losing bills

●Recover printing after netwok disconnection,to avoid losing bills

●2048K super input buffer,to avoid losing bills

●Support LOGO Graphical download and print

●Support 1D,2D bar code printing

●Support order come remind and error alarm

●Support black mark orientation and re-print

●GB18030Large font

●Support Multi language printing

●Rich -interface:Internet(100M)+USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;US B+Bluetooth

●Built-in WEB server,configure printer by IE browser

●Compatible with ESC/POS print instruction mode

●Support Windows,Linux,Android and IOS system printing

Application

Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal

Printer Parameters:

Item		Parameters
Print parameters	Printing Method	Thermal Line
	Printing width	72mm
	Resolution	576 Dots/Line or 512 Dots/Line（8dots/mm，203dpi）
	Print speed	300mm/Second
	Interface	Internet（100M）+USB+COM；Internet（100M）+USB+WIFI； USB+GPRS；USB+COM；USB+Bluetooth
	Line Spacing	3.75mm（Can adjust line spacing by command）
	Line No.	FontA-48Lines/FontB-64Lines/Simple,traditional Chinese-24 lines
	Character	standard GB18030 simplified / traditional Chinese Fonts
	Character Size	ANK character ， Font A ： 1.5×3.0mm （ 12×24 dots ） Font B：1.1×2.1mm（9×17 dots） Simplified/Traditional Chinese： 3.0×3.0mm(24×24 dots）
Bar code Character	Extended character set	PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Gr eek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/I ranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietna m/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257 )/(PC864)/(Vietnam)/(Thai)
Bar code Character	Bar code	1D bar code： UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/COD ABAR/CODE93/CODE128 2D barcode：QRCODE
Graphics printing	Graphics printing	Supports bitmap download and print
Cutter	Cutter Function	Full cut/Half cut
Paper	Type	Thermal
	Width	79.5±0.5mm
	Diameter	≤80mm

	Feed method	Easy feed(Clameshell feed)
Print commands	Commands	ESC/POS
Power	Power Adaptor	Input：AC 100V-220V,50-60Hz Output：DC 24V/2.5A
Power	Cash Drawer output	DC 24V/1A
Buffer	Input Buffer	2048K bytes
Buffer	NV Flash	256K bytes
physical characteristi cs	Weight	1.5KG
physical characteristi cs	Dimension	195145143(MM)
environmen t	Working	Temp：5 ~ 45℃， Humidity：10 ~ 80%
environmen t	Storage	Temp：-10 ~ 50℃ ，Humidity：10 ~ 90%（No dew）
Reliability parameter	Print Head Life	150KM（print density≤12.5）
Reliability parameter	Cutter Life	1500,000times
Software	Driver	Android,IOS,Linux,,WinXP,Win7,Win8,Win8.1,Win10
